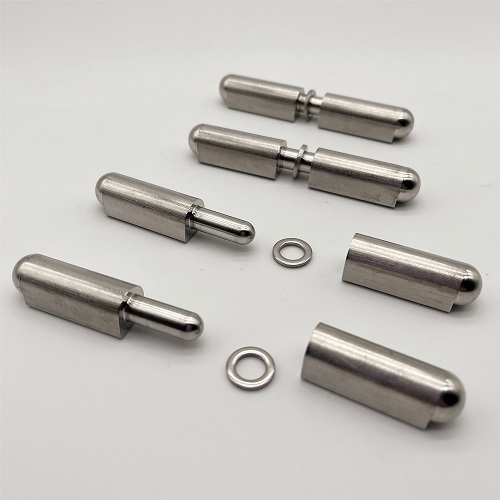

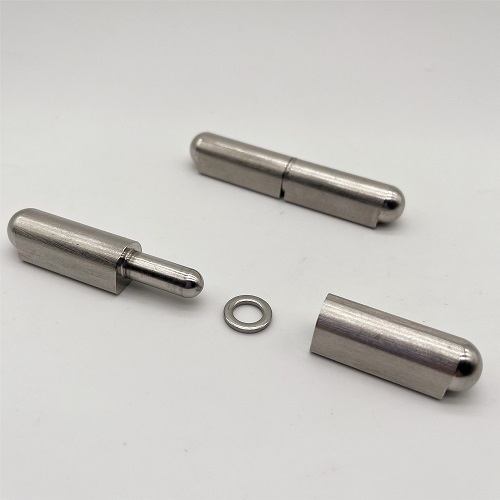

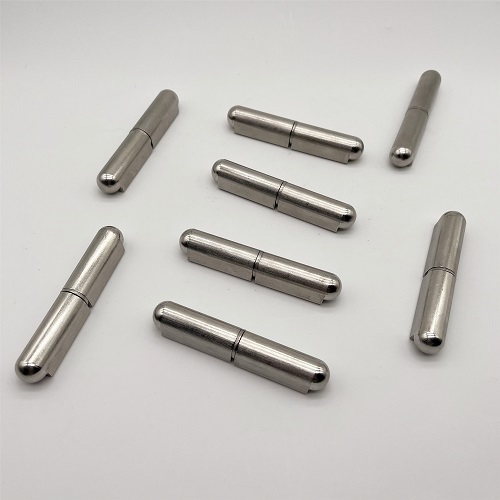

80 MM Stainless Steel Weld-on Hinge W/ SS Pin
A weld-on hinge is mounted with a weld instead of fasteners, making it extremely strong and able to support a lot of weight. These hinges are useful on thick metal surfaces where it may be impractical to drill and tap holes, and they offer better alignment, while preventing give from side to side.
Many of our hinges are designed with an extended weld guide, which helps to align the rounded hinge on a flat surface—normally a tricky operation. Once the part is aligned, the hinge can be welded in place just like a standard barrel hinge.
We manufacture weld-on hinges in aluminum, stainless steel and steel in a variety of sizes and finishes, and with bushings made of brass or stainless steel. Our hinge pins come in aluminum, brass, stainless steel or steel, in both fixed and removable pin styles. Removable pin weld-on hinges can be used as “lift-off” hinges for removable doors or gates.
WELD-ON STAINLESS STEEL HINGES
Ideal for use with: gates, trailers, commercial vehicles and steel doors.
These hinges offer a wide range of applications for all heavy duty items.
Main Features:
Highest quality #304 stainless steel material
Adapted profile for weld on applications
360 rotation
V-shaped flange for ease of weld-on installation
Stainless steel washer
Stainless steel fixed pin

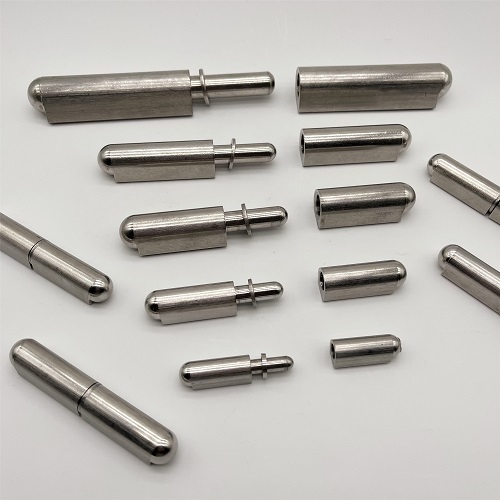

| Sizes Available (L x W) | Weight Load (Per Pair) |
| 60x10 (mm) | 180kgs |
| 80x13 (mm) | 270kgs |
| 100x16 (mm) | 320kgs |
| 120x18 (mm) | 360kgs |
| 150x20 (mm) | 400kgs |
Note:
Weight load figures shown are for general guidance, a range of factors including welding material, type of weld, environmental factors and many more can affect the overall rating of any hinge.
We stock a large range of Steel, steel with grease function, aluminium, and aluminium with grease function.
You should choose this weld-on hinge if you have to install doors, windows or shutters in damp rooms. The weld-on hinges are made of stainless steel AISI 304, which means that they are corrosion-resistant hinges. Stainless steel quality 304 is used for this hinge because it is easier to weld.
A major advantage is that by using a weld-on hinge, the door, window or hatch can be opened 180° to create a free passage.
With this versatile weld-on hinge for steel doors, the ring and pin are also made of stainless steel.
