To complement the finest quality glass panels and spigots, We also provide a complete range of hinge and latch gate hardware options. Our Pool Fence Gate Hardware is designed to suit the 8mm and 10mm toughened glass gates and 12mm hinge panels. Holes need to make on the glass panels to suit the Pool Fence Hardware.
When choosing your gate hardware, first you will need to design your pool fence and look at where your gate will be. Will it hang from a hinge panel or from a post or wall? Once you have decided this, you will be able to choose your hardware. Please remember that pool gates must swing away from the pool area.
Main Features:
Width: 4-3/16″ (106mm)
Height: 3-15/16″ (100mm)
Recommended Door Width: 36” (914mm)
Choose from:
Glass to glass hinges (gap between glass panels is 10mm)

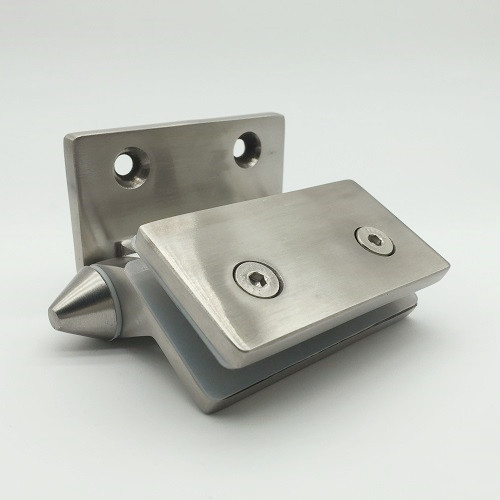

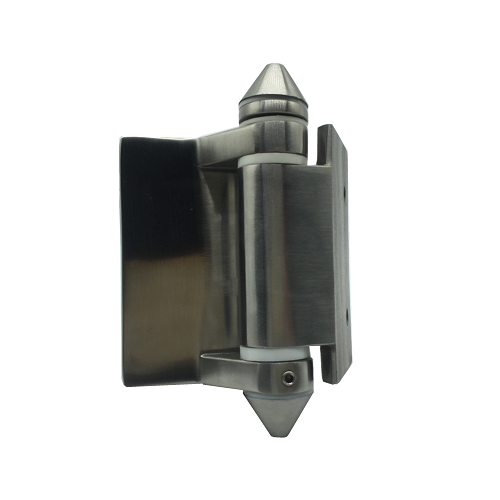

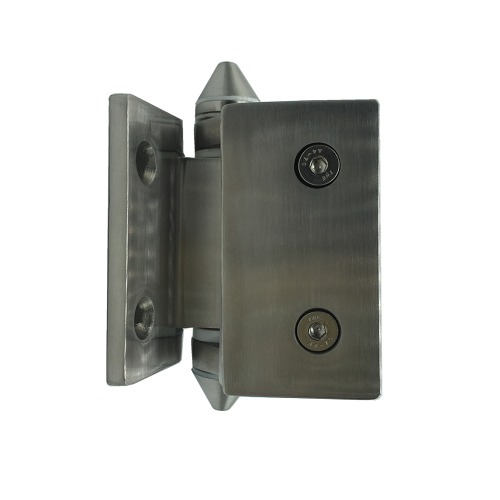

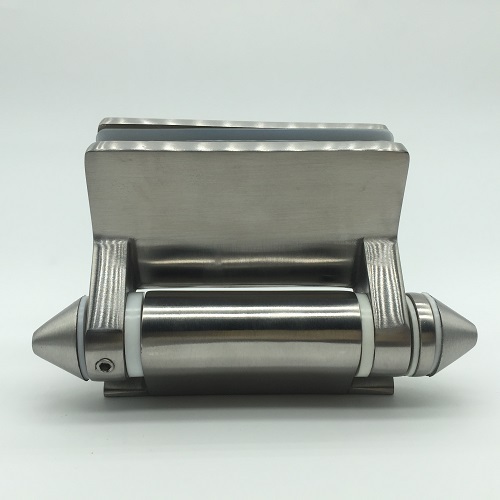

Glass to square post / wall hinges (gap between glass gate and wall / square post is 22mm)
Glass to round post hinge, these hinges will suit a 50mm diameter post. (gap between glass gate and wall / round post is 20mm)
Economical Design Glass Pool Fence Hinges:
We also sell glass pool fencing, spigots, latches and more.
Glass Gate Latches and Hinges
You will need to use 1 latch and 2 hinges for each gate you are installing in your pool fence. It is important that you select the correct hinge for your pool fence layout. You will need to know from where the gate will be hinged (swinging) and latched (closed against).
Latch options include:
Glass Gate to Glass Panel Straight
Glass Gate to Glass Panel 90 Degree Corner
Glass Gate to Wall/Square Post
Glass Gate to Round Post
Note: For most of our latches only the glass gate will require pre-drilled holes. When the non-gate side is also attaching to glass it is friction fixed with 2 grub screws.
