Description:

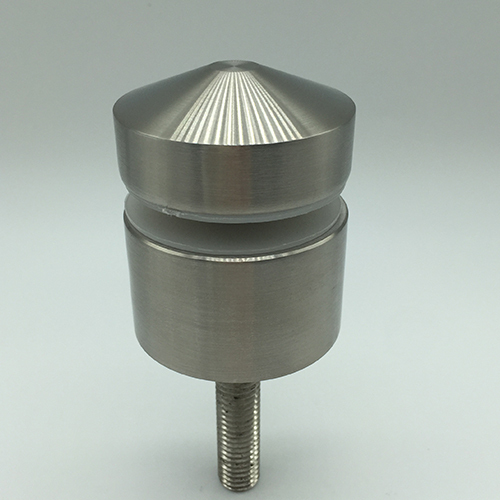

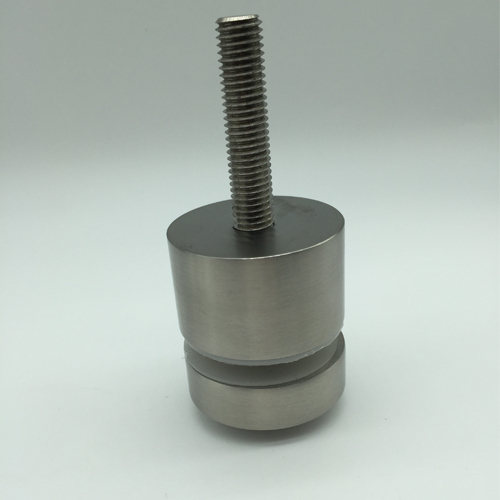

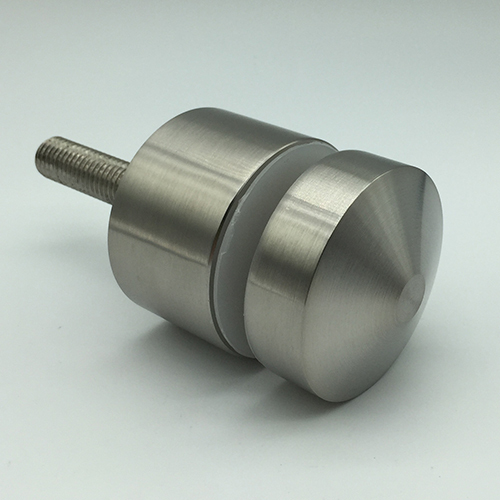

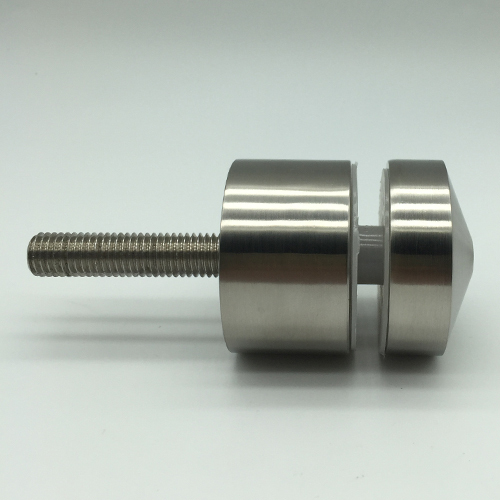

SS316 Grade Heavy Duty Glass Railing Round Standoff Base and Cap
Polished, powerful, and elegant — the standoff bracket pin system consists of glass panels held up by 2”round stainless steel standoffs. This part is bolted into the mounting surface. Then, once the glass is in place, the rest of the pin is attached to the outer side of the glass panel and twisted into place until the glass is compressed. The glass standoffs are made from marine grade 316 stainless steel with premium corrosion resistance, applicable both for indoor and outdoor glass railings. These standoffs may be small in size, but you shouldn’t underestimate them. These sturdy pins are side-mounted, much in the same style as the Side Mount Post.
Features:
Stainless steel 316 grade material
Available finishes in satin, mirror or matte black
For use with 1/2" and 3/4" (12 and 19 mm) Tempered Glass
For wood, steel or concrete wall
The standoff is 2" (50 mm) round diameter with a 1-3/16" (30 mm) base
Glass fabrication: Glass cutting required. (drilling 9/16")
An M12 wood or concrete bolt come with the package

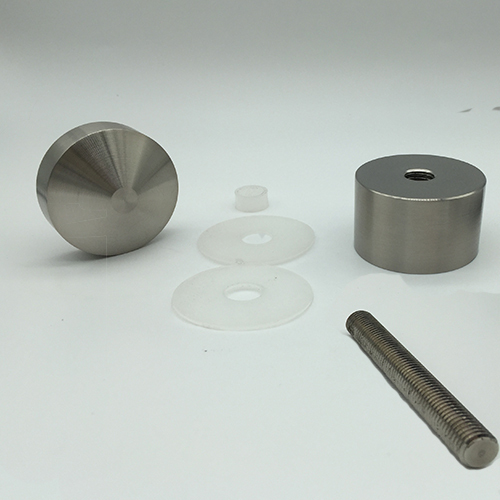

Package Contents:
1 × standoff base
1 × standoff cap
2 × silicon gasket
1 × plastic ring
1 × M12 bolt
Dimension:
50mm Ø * 10mm cap, 50mm Ø * 30mm base, M12 bolt
Note:
For use with 1/2" to 3/4"(12 to 19 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
