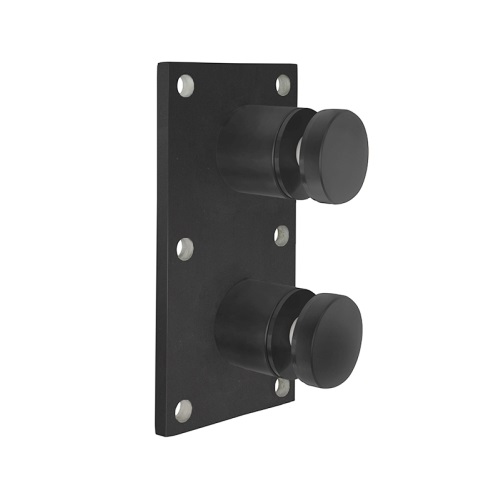

Matte Black Heavy Duty Stainless Steel Twin Glass Standoff with Mounting Plate for Glass Railing
Description:
Compact Design for Minimal Obstruction Complete With Mounting Plate Designed for ½" and ¾"(12 and 19 mm) Tempered Glass Applications Brushed or Polished Stainless Finishes Available Designed for Wood or Steel Mounting Attachment Our new Glass Rail Standoff Fittings can be used two ways to mount glass up to ¾ inches (19 millimeter) thick. The Drill-Through Method will allow flush mounting of the glass to the surface of the wallboard. The steel back plate can also be fastened directly to steel supports, raising the glass off of the surface.
Features:
For use with 1/2" to 27/32" Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Thickness 1-1/4". Stainless Steel Sheet: 8" x 4" x 3/8"
Glass Fabrication: Two 3/4" Diameter Holes Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions
The spacing between Standoffs is 4"

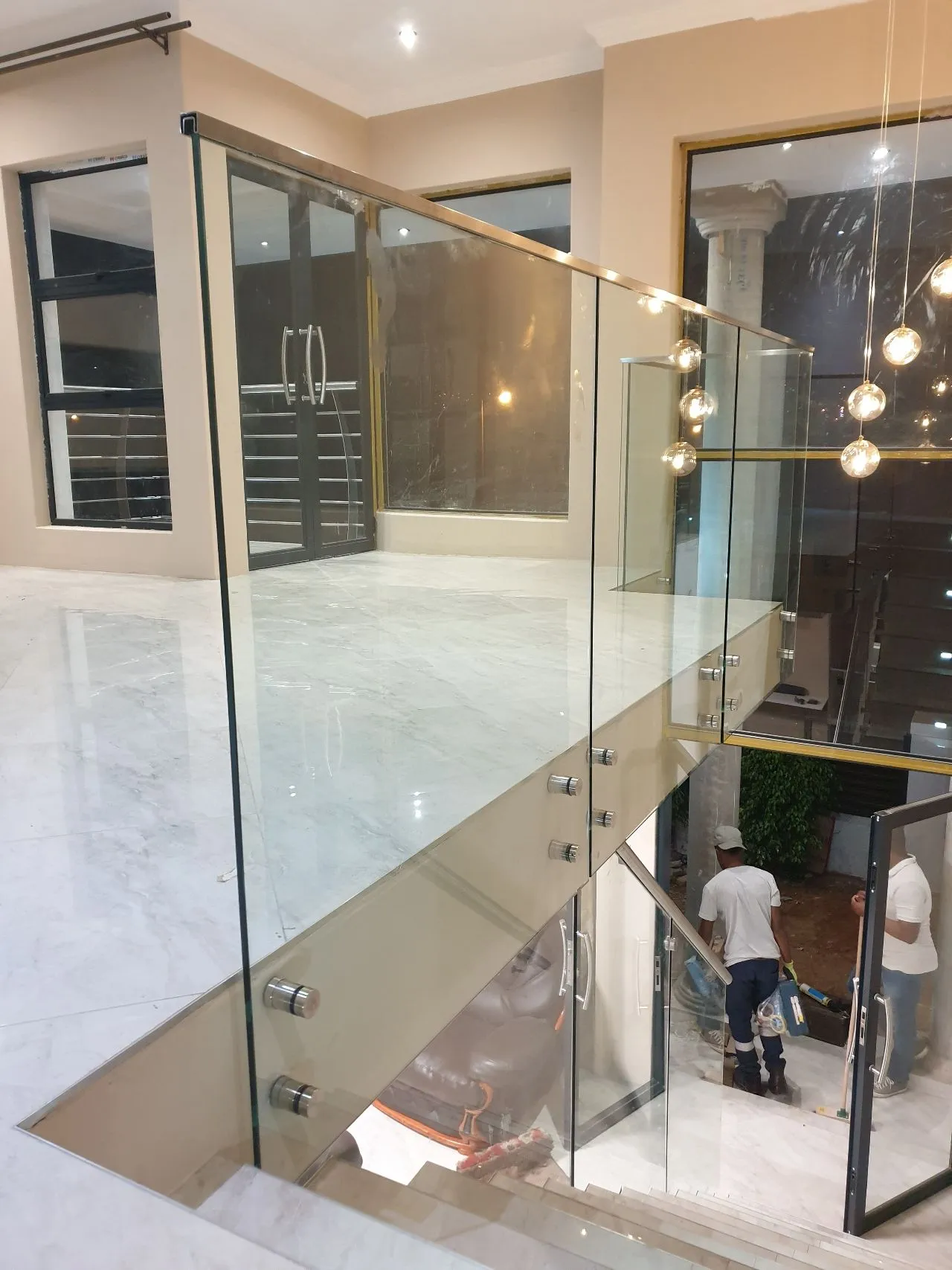

Widely used for glass railing project - balcony railing, deck railing, frameless pool fence, etc.
High Grade 316 Stainless Steel Alloy Standard
The heavy-duty Glass Rail Standoffs are designed to work along with hand or guard railings.
Dimension:
50mm Ø * 10mm cap, 50mm Ø * 30mm base
Mounting plate 200mm * 100mm * 8mm
More Glass Railing Standoff Designs:
Note:
For use with 1/2" to 3/4"(12 to 19 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
