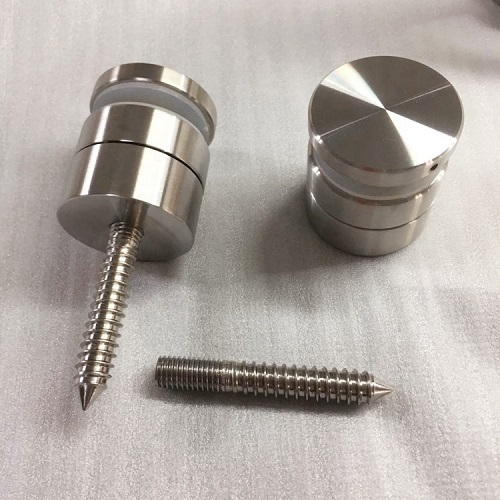

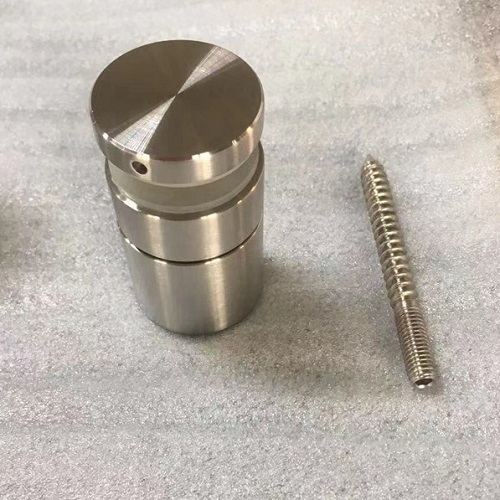

Stainless Steel Adjustable Standoffs for Structural Glass Railings
Description:
Glass standoffs provide the ultimate finish in point fixing frameless glass panels. Our glass standoffs are high quality and offer a range of installation advantages. Made from precision machined 316 grade stainless steel, our standoffs are available in polish or satin finishes. And it’s available also in matte black color. Specifically engineered for 10-19mm thick glass with a heavy duty 12mm M12 thread, our glass standoffs are ideally suited to any glass railing project.
Features:
- Allow easy and precise vertical alignment of glass panels.
- No need for shims or extra washers.
- No need to remove glass panel in order to add extra washers.
- No need to bend glass panels in order to line them up using glass caps or handrails.
- After glass panel is set in place, it can be vertically aligned from the face side using Allen key.
- Individual standoffs can extend up to 1/4″, which translates into a few inches of adjustability at the top of the glass.
- Material is 316 grade stainless steel. Satin finish.
- Standoff has diameter in 38mm(1 1/2”) and 50mm(2”).
- Recommended glass size is 1/2″.
- Recommended hole size for glass is 16mm.
- Customization available.

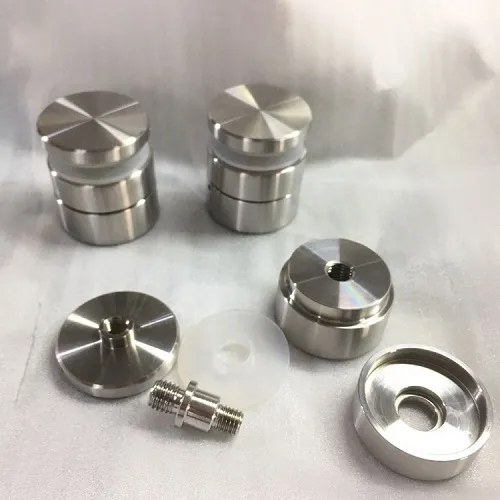

Package Contents:
Standoff Body 1-1/2" dia
Adjustable Screw, Glass Retainer
Two Plastic Neck Washers
Flat Nut Cap 1-1/2" dia
Use Adjustable Standoff to align and level frameless glass panels as per installation instructions.
For securing standoffs directly to a wood support, we recommend 1 pc hanger bolts per standoff.
More Glass Railing Standoff Designs:
Note:
For use with 1/2" to 3/4"(12 to 19 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
