Outdoor Tempered Glass Balcony Railing System Aluminum Glass Railing, 20cm Aluminum Base Shoe Profile
Description:

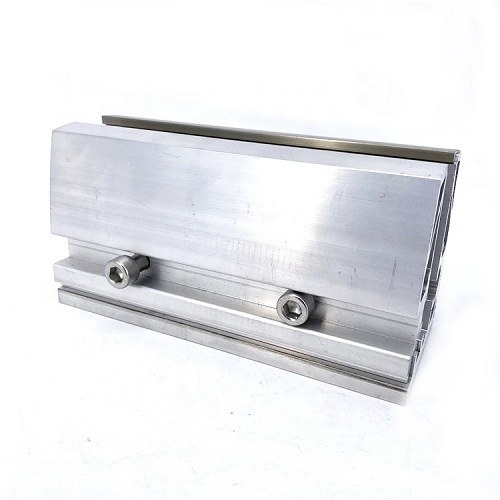

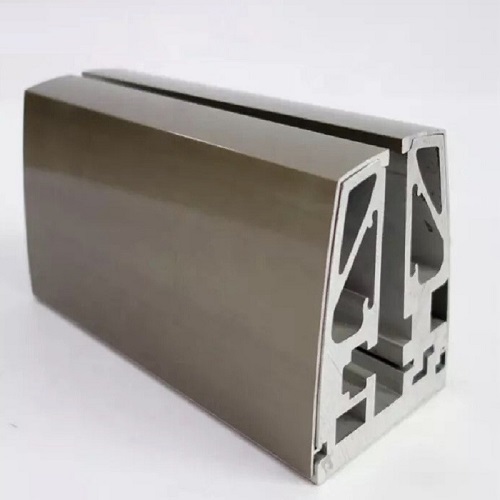

Our Smart Base BS-200A is an aluminium glass railing system that has 62mm width, 102 mm height, used with 12-13.52 mm thickness glass. It is a safe and decorative system that can be easily adjusted with adjusting screw on the side. 20 cm of bases are used as 3 pieces in 1 meter. Covered with decorative aluminum cover. Upper cap rail aluminium profile is optional.
Features:
Height (floor to handrail top): 42″(1067mm) or customized size
Thickness of glass: 12mm to 13.52mm tempered or laminated glass
Glass types: clear Glass /Frosted Glass / Ultra Clear Glass / Green Glass / Blue Glass,etc
Top handrail types: Square or round slotted tube stainless steel handrail
Material & Finish: High grade Aluminum 6063 T5, natural surface

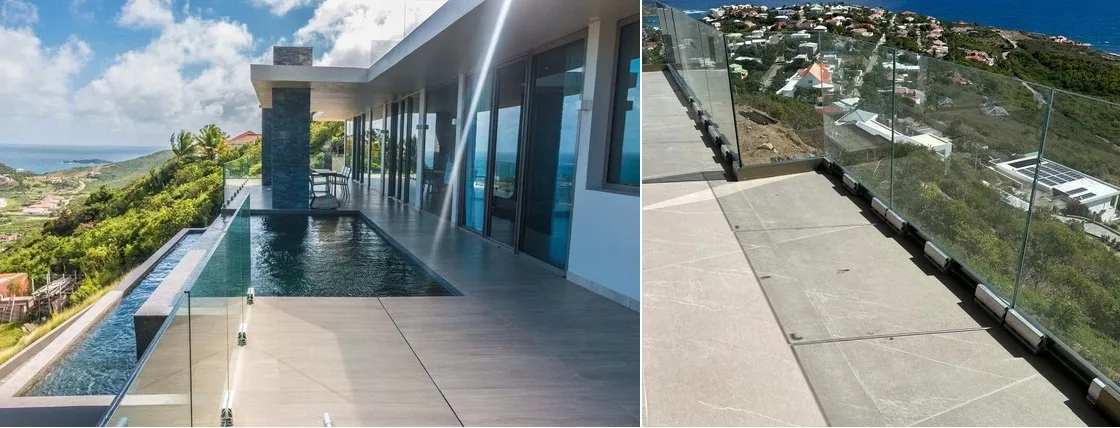

Application: Railing and balustrade for shopping mall, villa balcony, modern stair, airport and subway station etc.
Package Contents (for 1 meter base U channel):
3 × aluminum & plastic clamping fittings
3 × expansion screws
Dimension:
102mm H × 62mm W
LED lights come in a variety of colors, including but not limited to red, yellow, green white, etc.
Note:
Base rail covers, installation tools and bulb seal are sold separately due to the different configurations each project requires.
